Description:

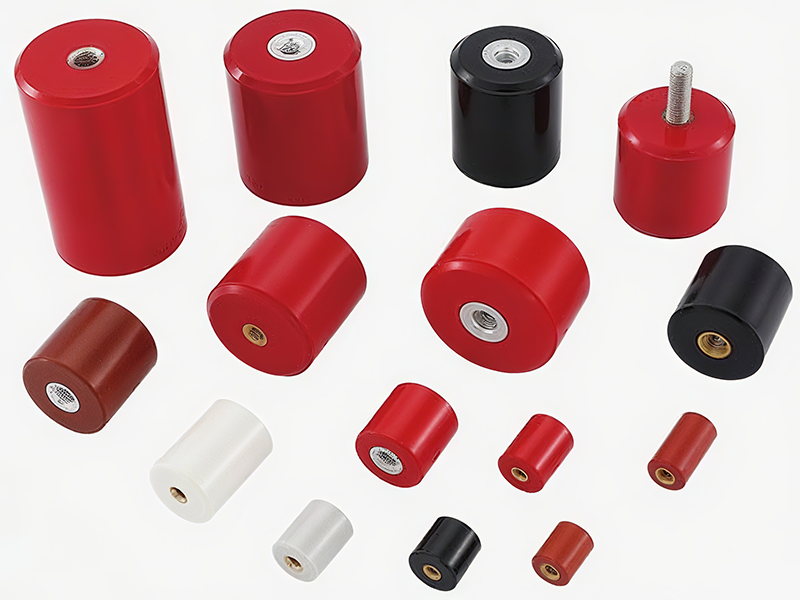

The MNS high-strength insulator, also known as a cylindrical insulator, is manufactured using high-strength unsaturated polyester resin. It is designed to meet the specific usage requirements, installation methods, and environmental conditions of various equipment, including communication cabinets, electrical systems, lightning protection equipment, mechanical devices, medical equipment, wind power systems, and frequency control devices. It mainly serves the functions of mechanical support, electrical connection, and insulation.
Certifications:
CE, SGS, RoHS certified
Technical Specifications:
- Model: MNS
- Thread Sizes: M6 / M8 / M10 / M12 / M14 / M16
- Material: DMC, BMC
- Voltage Rating: 660V – 4500V
- Flame Rating: UL94-V0
- Customization: Non-standard specifications available upon request
- Application: Support and connection for busbars
| Model | Diameter D (mm) | Height H (mm) | Thread (S) |
|---|---|---|---|
| MNS16X015 | 16 | 15 | 1/4/M4, M6 |
| MNS16X020 | 16 | 20 | 1/4/M4, M6 |
| MNS16X025 | 16 | 25 | 1/4/M4, M6 |
| MNS16X030 | 16 | 30 | 1/4/M4, M6 |
| MNS20X025 | 20 | 25 | 1/4/M4, M6 |
| MNS20X030 | 20 | 30 | 1/4/M4, M6 |
| MNS20X035 | 20 | 35 | 1/4/M4, M6 |
| MNS20X040 | 20 | 40 | 1/4/M4, M6 |
| MNS20X050 | 20 | 50 | 1/4/M4, M6 |
| MNS25X025 | 25 | 25 | 1/4/M4, M6 |
| MNS25X030 | 25 | 30 | 1/4/M4, M6 |
| MNS25X035 | 25 | 35 | 1/4/M4, M6 |
| MNS25X040 | 25 | 40 | 1/4/M4, M6 |
| MNS25X045 | 25 | 45 | 1/4/M4, M6 |
| MNS25X050 | 25 | 50 | 1/4/M4, M6 |
| MNS25X060 | 25 | 60 | 1/4/M4, M6 |
| MNS30X030 | 30 | 30 | M6, M8 |
| MNS30X040 | 30 | 40 | M6, M8 |
| MNS30X050 | 30 | 50 | M6, M8 |
| MNS30X060 | 30 | 60 | M6, M8 |
| Model | Diameter D (mm) | Height H (mm) | Thread (S) | Customization |
|---|---|---|---|---|
| MNS30X100 | 30 | 100 | M6, M8 | – |
| MNS35X030 | 35 | 30 | M6, M8, M10 | – |
| MNS35X040 | 35 | 40 | M6, M8, M10 | – |
| MNS35X050 | 35 | 50 | M6, M8, M10 | – |
| MNS35X060 | 35 | 60 | M6, M8, M10 | – |
| MNS40X030 | 40 | 30 | M8, M10 | – |
| MNS40X040 | 40 | 40 | M8, M10 | – |
| MNS40X050 | 40 | 50 | M8, M10 | – |
| MNS40X060 | 40 | 60 | M8, M10 | – |
| MNS50X040 | 50 | 40 | M8, M10, M12 | – |
| MNS50X050 | 50 | 50 | M8, M10, M12 | – |
| MNS50X060 | 50 | 60 | M8, M10, M12 | – |
| MNS60X060 | 60 | 60 | M8, M10, M12 | – |
| MNS60X070 | 60 | 70 | M8, M10, M12 | – |
| MNS60X080 | 60 | 80 | M8, M10, M12 | – |
| MNS60X090 | 60 | 90 | M8, M10, M12 | – |
| MNS60X100 | 60 | 100 | M8, M10, M12 | – |
| MNS70X100 | 70 | 100 | M8, M10, M12 | – |
| MNS70X110 | 70 | 110 | M8, M10, M12 | Customizable upon request |
